Spiral Prize Dispenser Jams: Check the Product Fit Before the Motor

The spiral turns, but the prize stays in the tray. On the next attempt, two items lean together and the motor stalls. It is tempting to look for a stronger motor. First check whether the product can move and release cleanly through the existing mechanism.

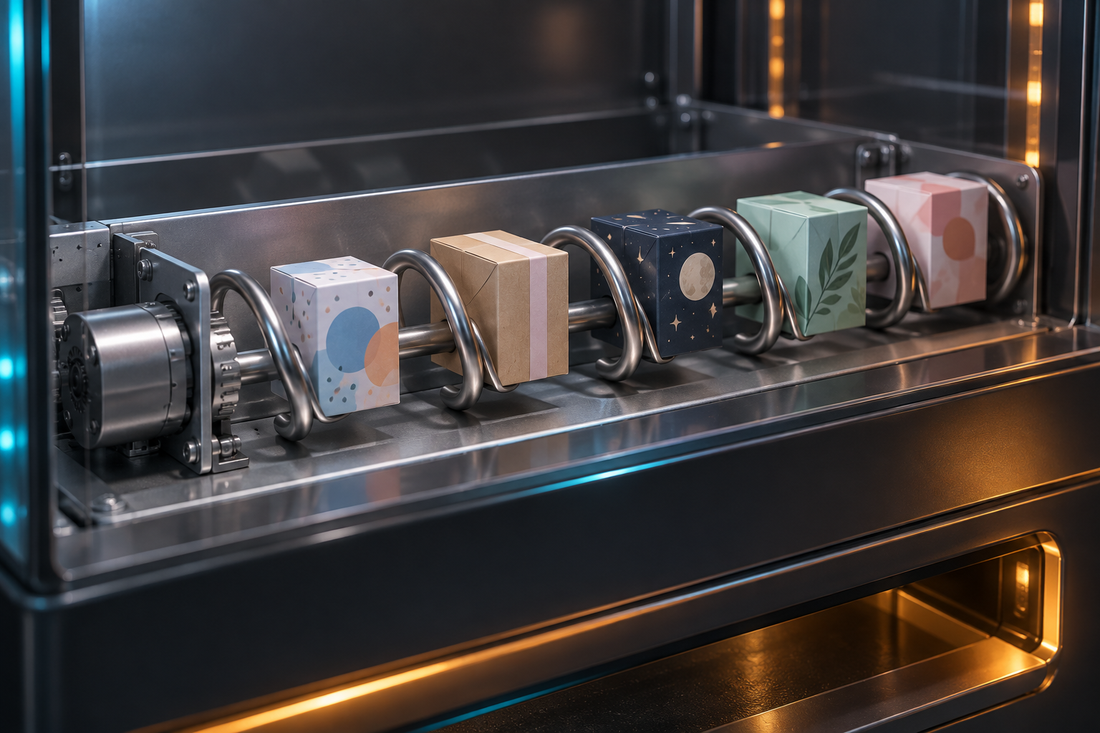

A spiral dispenser depends on the relationship between the package, the spiral and the guide path. Changing the prize can change that relationship even when the machine itself has not been touched.

Record the failure before clearing it

Note whether the spiral fails to turn, turns without advancing the product, stalls under load or reaches the end without releasing the item. Record which package was involved and where it stopped. Disconnect power and follow the service procedure before reaching into the tray or handling the drive.

Do not repeatedly energise a stalled mechanism. Do not force the spiral or geartrain backwards unless the manufacturer expressly allows it. Remove the trapped product using the approved access method.

Check the package in its loaded orientation

Measure the item as it will actually sit in the machine, including seams, hanging tabs, shrink-wrap and any bulging part of the package. Compare that shape with the available space between turns and the tray's side clearance.

A soft bag behaves differently from a rigid box of the same nominal width. It may sag around a turn or catch a seam on a guide. A tall box can lean into its neighbour. A glossy wrapper may slide differently from the stock used during the previous setup.

Try the manufacturer-approved product orientation and loading arrangement. Do not pack extra prizes between turns or compress flexible products to make them fit. A tray that can be filled by hand is not necessarily a tray that can dispense every item reliably.

Look at the last part of the journey

Inspect the outlet and release area with power disconnected. Is the leading item clear of the front edge? Can it drop without catching a lip or striking an adjacent object? Is the guide secure and correctly aligned?

A package can advance correctly through most of the tray but fail at the release point. That makes the final clearance and package orientation as important as the space farther back. Use the specified home position and adjustment procedure for the exact mechanism.

Separate load problems from drive problems

After safe reassembly, run the manufacturer's diagnostic cycle with the recommended test load. If the mechanism operates correctly in that configuration but jams with a particular prize, investigate the product and loading arrangement first.

If operation is still inconsistent, follow the model's drive and controller checks. A damaged gear, loose coupling, supply problem or incorrect control sequence requires a different repair from a badly fitting package. Live electrical measurements should be made by a qualified technician using the correct documentation.

Verify compatibility before replacing the assembly

The Amuseparts motorized spiral prize dispenser is a 12V assembly with a gearmotor, mounting plate, guide arm and metal spiral. Match its mounting dimensions, controller connection and supported prize size to your machine before ordering.

Do not infer torque, cycle timing, connector polarity or universal machine compatibility from the 12V label. Send the machine model, existing assembly photographs and package measurements so missing details can be checked.

Test the full loading cycle

Test more than the first item. Run repeated normal cycles, check each release and repeat with the tray at different fill levels according to the manufacturer's procedure. Keep fingers clear of the mechanism while powered.

Once a package works, record its dimensions, orientation and loading arrangement. Recheck the setup whenever prize packaging changes. A documented loading method is often more valuable than an extra motor kept on the shelf.
