Arcade Ticket Dispenser Jamming: A Practical Troubleshooting Guide

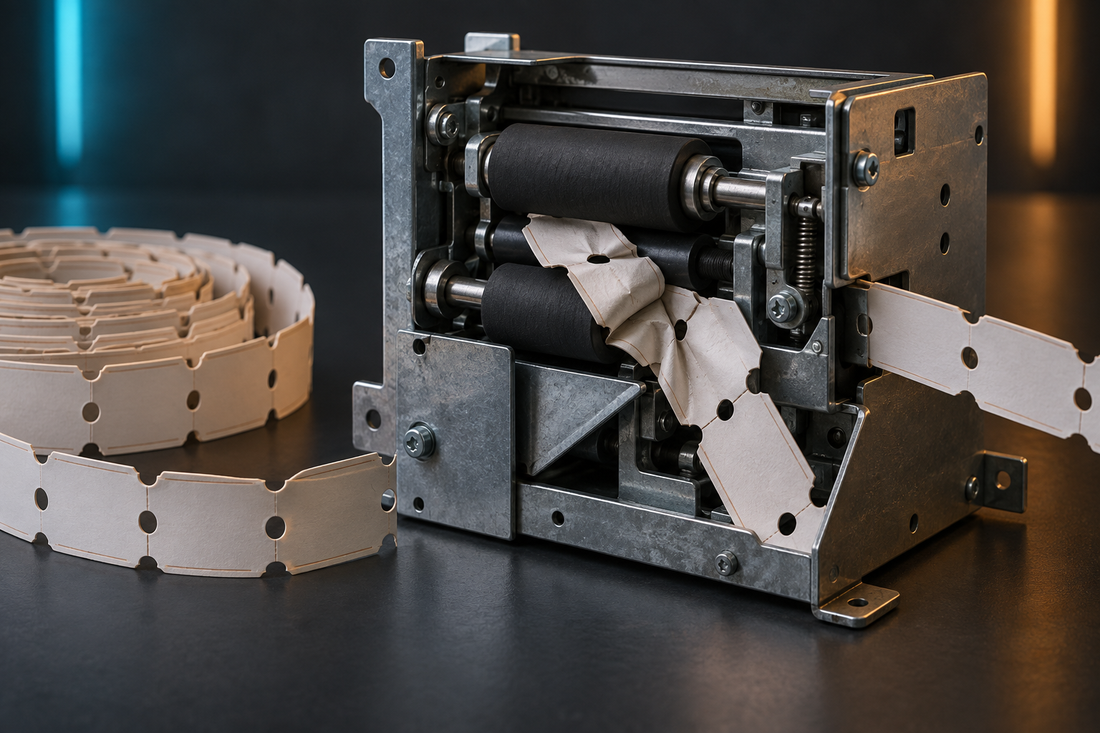

A ticket jam cleared in a hurry often comes back during the next busy session. The torn strip was the symptom. The cause may still be sitting in the ticket box, against a guide or on a feed roller.

Start by noting where the tickets stop. A fold trapped before the feeder suggests a different problem from tickets bunching at the outlet. Take a photo before pulling anything free. Then disconnect power and follow the dispenser's service instructions before reaching near rollers or moving parts.

Check the ticket stock first

Compare the tickets with the dispenser manufacturer's specification. Width, thickness, perforation spacing and any required optical marks matter. Two packs that look alike on a shelf may feed differently in the same mechanism.

Look at the last few tickets before the jam. Damp stock, curled edges, crushed folds or a badly joined strip can make the feed inconsistent. Set damaged stock aside rather than threading the same section again. Do not assume that a pack's ticket count says anything about its physical compatibility.

Follow the path from box to outlet

1. Check the supply stack. The strip should leave the stack without dragging over the box edge or pulling a whole bundle upwards.
2. Check the approach. Route the strip as shown in the dispenser manual. A sharp sideways pull can send it into the guide at an angle.
3. Inspect the guides. Remove loose scraps using the approved service method. Look for bent edges or an incorrectly seated cover.
4. Inspect the outlet. Confirm that tickets have a clear exit and are not catching on the cabinet opening.

Change one thing at a time. If you straighten the supply path, replace the stock and adjust the guides together, you lose the chance to identify which change solved the problem.

Separate a feed problem from a counting problem

If the rollers turn but the strip stays still, inspect grip, alignment and ticket condition. If tickets move freely but the payout stops early or runs too far, consult the model's sensing and control procedure. Depending on the design, a dirty sensor, unsuitable ticket markings or an incorrect control signal may need investigation.

Do not apply a universal sensor adjustment or cleaning fluid. The Deltronic DL-1275, for example, uses specific guide, braking and optical-sensor features. Its construction illustrates why instructions for one dispenser should not automatically be used on another.

Run a controlled payout test

After clearing the path and reassembling the mechanism, use the manufacturer's ticket-advance or diagnostic routine. Keep hands clear while it runs. Test a short payout, then several normal payouts, and count the tickets against the requested amount.

Repeat with the supply box in its usual position. A dispenser can work perfectly on a bench but jam when a closed service door presses the ticket stack against its entry path. Inspect with power disconnected if access is needed.

When replacement makes sense

Replace damaged or worn parts when the cause is established. A new feeder will not correct unsuitable tickets or an incorrect controller connection. Before ordering, collect the old dispenser's model, supply voltage, connector arrangement, mounting dimensions and supported ticket format.

The Amuseparts arcade ticket dispenser requires a compatibility check. Its available product information does not specify a universal supply voltage or pinout. For stock and storage, compare our redemption tickets and ticket storage box with your existing setup.

Keep a simple jam log: machine, time, ticket batch, jam position and repair. A pattern linked to one batch or one loading method is more useful than repeatedly replacing the same assembly.
