Arcade Joystick Missing a Direction? Check These Four Points

Your joystick moves left, right and down, but up only works when the player pushes hard. Or the cabinet reports left while the stick is centred. Both faults are easier to investigate when you separate mechanical movement from the electrical input.

Begin with the machine's documented input-test screen. Check each direction separately and watch what happens as the stick returns to centre. Note the results before making adjustments. Disconnect power before opening the control panel or handling switches and wiring.

1. Watch what the actuator actually reaches

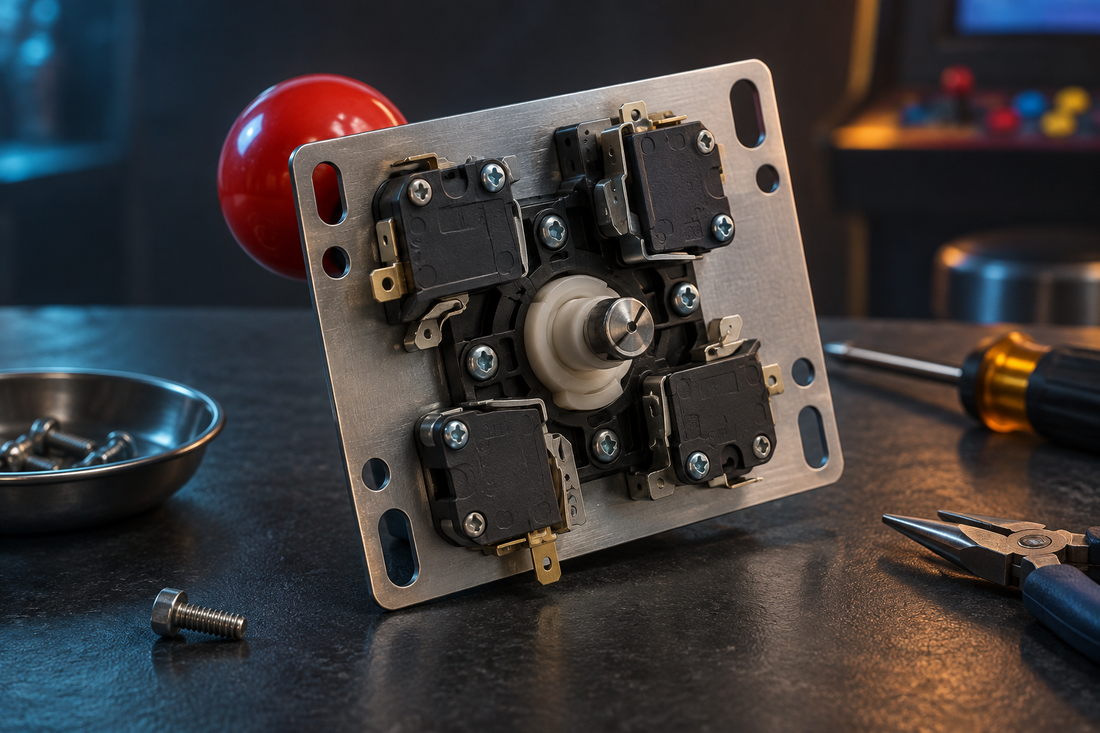

With the assembly unpowered, move the stick through its normal travel and inspect the mechanism underneath. Look for a loose mounting plate, damaged actuator, misplaced switch or obstruction. Compare the problem direction with the opposite direction.

A microswitch may be electrically sound but positioned so the actuator barely reaches it. Conversely, a distorted lever or badly seated switch may keep an input active when the stick is at rest. Do not bend every lever until the input appears to work. Follow the joystick's adjustment instructions and preserve its intended travel.

2. Check the suspect switch as a separate component

Photograph the connections and identify the switch markings. If you can safely use a multimeter, isolate the switch from the unpowered circuit and check the required contact pair through its normal operating travel. The change should repeat consistently and reverse when the actuator is released.

A single successful beep is weak evidence for an intermittent fault. Test several normal operations without forcing the mechanism. If a direct switch operation is reliable but moving the assembled stick is not, return to the mounting and actuator checks.

Switch selection also depends on operating force, actuator style, travel and mounting. OMRON explains these characteristics in its technical guide to basic switches. Matching only the outer body size is not enough.

3. Follow the direction signal through the harness

Check the connector on the failed input and any shared connection identified by the wiring diagram. A terminal can look attached while its crimp or grip is poor. Look for a wire pulled tight when the control panel opens and for damage near hinges.

If all directions stop working together, a shared connection or controller issue deserves attention before four separate switches are ordered. If an input is permanently active, inspect for incorrect contact selection, a held actuator or a wiring fault. Use the machine's pinout rather than the wire colours from a different cabinet.

4. Distinguish a fault from a configuration mismatch

Some games expect four-way movement and others use eight-way movement. A joystick that is unsuitable for the game can feel wrong even when its switches work. Check the joystick's intended operating mode, any manufacturer-supported restrictor configuration and the game's input mapping.

After a recent installation, also check orientation. The electrical direction reported by the controller needs to match the physical movement seen by the player. Correct this using the documented wiring or configuration, not improvised changes to the power connections.

Choose the smallest justified repair

If the mechanism is sound and the switch has failed, compare the Amuseparts joystick microswitch with the original mounting and actuator. If the assembly itself is damaged, check the dimensions and interface of a complete replacement such as our illuminated eight-way joystick. Illumination compatibility is a separate electrical check.

Finish with a closed-panel input test: each direction, return to centre and the combinations the game uses. Then play a short normal session. A repair is complete when the original symptom is gone in actual operation, not just when a new part is fitted.
