5V or 12V Arcade Counter? How to Choose the Correct Replacement

The old counter has stopped advancing. A replacement has the same six windows and almost the same mounting bracket, so it looks like an easy swap. The missing detail is often the most important one: the voltage the counter was designed to receive.

A listing that offers 5V and 12V versions does not necessarily describe one counter that accepts either supply. On the Amuseparts six-digit electromechanical counter, they are separate voltage versions. Confirm the required version before ordering.

Read the counter label and the circuit diagram together

Disconnect the cabinet from power before accessing the assembly. Photograph the counter, its markings, the connector and the mounting. Record the machine model and any part number on the old unit.

Check the service documentation for the counter output. The voltage printed on the cabinet's main power supply is not enough: one machine may distribute several different supply rails. The counter circuit, including its driver, is what matters.

If the label is unreadable and the manual cannot identify the output, pause the parts order. An appropriate measurement by a qualified technician is more useful than trying different counters. Do not connect a 5V unit to 12V to see whether it works.

Voltage is only one compatibility check

An electromechanical counter advances in response to a suitable electrical pulse. A replacement must be compatible with how the machine drives it, not simply with the number of digits on its face.

• Supply type and rating: match the specified DC voltage and any polarity requirement.
• Pulse timing: confirm the minimum pulse duration, recovery time and permitted counting rate for the exact counter.
• Driver capability: establish the counter's current requirement and whether the controller output is intended to drive that load.
• Suppression: retain the manufacturer's specified arrangement for an inductive load. Do not add, remove or reverse components by guesswork.
• Physical fit: check hole spacing, viewing position, terminal clearance and the space behind the panel.

The available information for our counter does not state pulse timing, current consumption or mounting dimensions. Ask us to confirm the missing details against your machine before treating it as a direct replacement.

A counter that misses counts may be receiving the wrong signal

Before condemning the unit, compare the fault with the machine's behaviour. Does it miss every event, only rapid events or an entire type of event? Does the game register a credit even when the physical counter remains still?

A pattern linked to speed can justify checking pulse timing. A complete loss of counting can justify checking the harness and driver. These are diagnostic leads, not proof of a particular fault. Live circuit testing belongs with someone equipped to work safely on the machine.

Test a known number of events

Once the correct replacement is installed and the cabinet is safely reassembled, use the documented service test. Write down the starting reading, generate a small known number of events and compare the final reading. Repeat at the machine's normal operating pace.

Use the event the counter is actually configured to record. A credit counter and a play counter can legitimately produce different totals when multiple credits buy one game or when free-play modes are involved. Do not change accounting settings just to make the readings agree.

Keep the replacement record with the cabinet

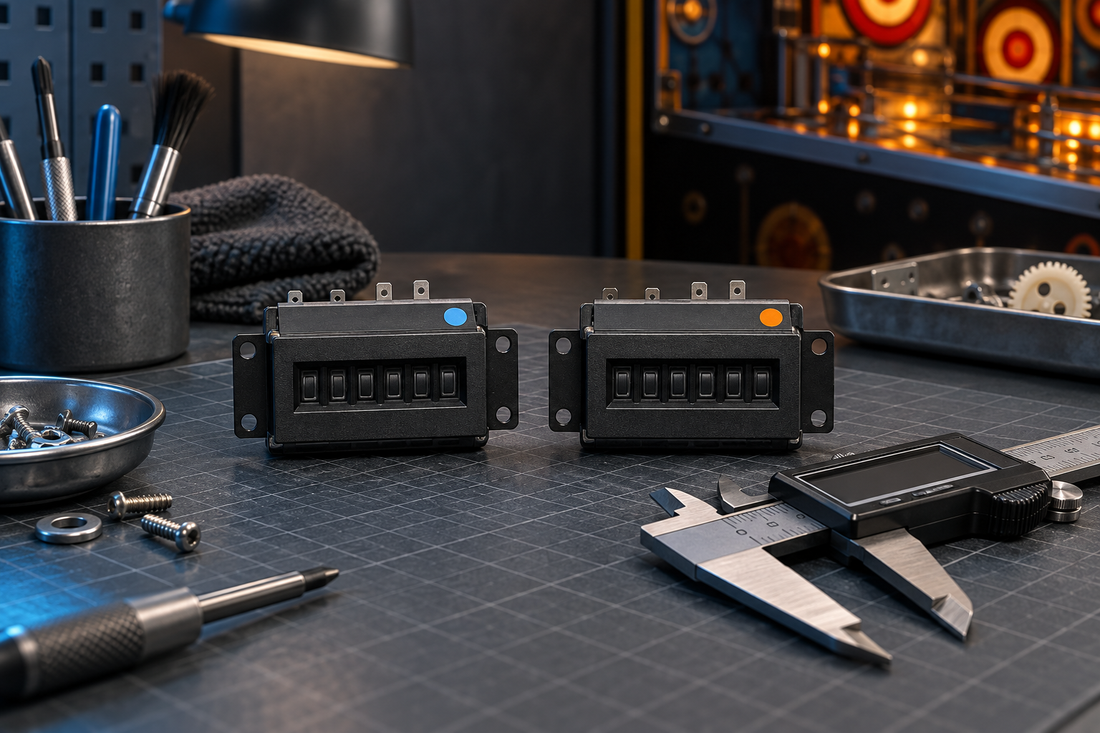

Record the old reading, new reading, date, voltage version and part identification. Mark the spare-part packet clearly as 5V or 12V. If both versions are stocked in the same workshop, separate compartments prevent an avoidable installation error.

The best replacement is the one that matches the machine's electrical and mechanical requirements. The right number of digits is only the beginning of that check.
